How to Plan Cable Routes for a Live Event

Start with destinations and movement

A cable connects equipment, but its route occupies a working space. That space might also be needed by guests, performers, catering teams, flight cases or a moving stage item. A route that looks convenient to one department can obstruct another department's work.

A cable route must work for the people crossing it as well as the equipment connected by it.

Begin during production advance, while the room layout, supplier scope and access arrangements can still be discussed. Identify the equipment positions and connections, then review the movements that could conflict with them. Include setup and removal, not only the audience arrangement during the show.

This guide concerns coordination. Electrical design, installation and verification belong with people competent for that work under the applicable local requirements. Overhead supports and buried routes need their own specialist assessment; a floor-plan sketch does not authorize them.

Make one route plan visible to the departments using it

Use the current venue layout to identify stage and control positions, equipment areas, entrances, movement paths and proposed crossings. Ask the venue which arrangements apply to this event rather than relying on a generic room plan.

Record each important connection's endpoints, system owner and route reference. Establish whether a line remains in place, moves during a changeover or must remain accessible for maintenance. Ask the relevant department to confirm its cable type, permitted handling, connection requirements and workable length. An approximate line on a plan is not a measured cable requirement.

Then compare departmental proposals. Several teams can each submit a reasonable route while collectively creating an overcrowded crossing or an inaccessible connection. One shared plan makes that interface visible. It need not place every microphone lead on the venue drawing, but it should show the routes and dependencies that affect others.

Choose the route before treating protection as the answer

HSE's UK event guidance recommends routing cables to reduce trips and mechanical damage and to allow safe installation and removal. It also advises separating vehicle traffic and cable routes where possible. These are useful planning considerations, not a substitute for local requirements. HSE event electrical guidance

Compare a direct crossing with alternatives before deciding that protection solves the problem. A longer perimeter route may avoid guest circulation but conflict with a service doorway. A route behind seating may be affected by the final furniture layout. Check the whole route and the work it must support.

Where a crossing remains necessary, agree it with the venue and responsible teams, including accessibility and emergency-route implications. A cable protector does not by itself establish that an exit or accessible route remains suitable.

Select protection for the actual crossing

Describe who and what will cross: pedestrians, mobility devices, wheeled cases or vehicles. Identify the surface and environment as well as the cables being protected. Check the selected product's channel dimensions, load conditions, configuration and instructions. Checkers' manufacturer guidance distinguishes channel fit, traffic loading and ramp height or slope. A rating for one model or load condition is not a rating for every protector. Checkers selection guidance

Plan protection before installation. The installation sequence then follows the selected system's instructions and the agreed working method. There is no universal rule that every ramp must physically be positioned before every cable.

Assign who supplies and installs the protection, who checks the completed crossing and who maintains it during the event. Do not use tape as a substitute where the crossing requires load-bearing protection. Any proposed fixing or floor treatment also needs the venue's agreement.

Coordinate technical requirements without inventing blanket rules

Identify power, audio, video and data separately in the plan. A shared corridor does not mean those services can be bundled together or placed in the same channel. Ask the responsible specialists to agree the installation arrangement under the applicable requirements and product instructions. This guide does not prescribe a universal separation distance or crossing angle.

Connection types matter too. Yamaha's interconnection guidance explains that an audio connector's physical fit does not establish signal compatibility, and that using a TRS lead alone does not turn an unbalanced instrument connection into a balanced one. Route planning should preserve the department's specified connection, not silently substitute whatever lead reaches. Yamaha interconnection guidance

Allow for connectors and access at equipment positions. Where fibre is used, handling limits come from the actual cable specification; tight bending can introduce optical loss. Do not infer one bend limit for all fibre cables. Fluke Networks fibre guidance

Worked example 1: a stage-to-FOH route

Consider a fictional ballroom event. The audio team needs a connection between its stage equipment position and front of house, abbreviated FOH. The shortest line runs through guest circulation. A proposed perimeter route instead meets a service passage before reaching FOH.

The venue-plan diagram compares those two proposals. It is not to scale and does not specify a complete venue, exit arrangement, cable type or protection product.

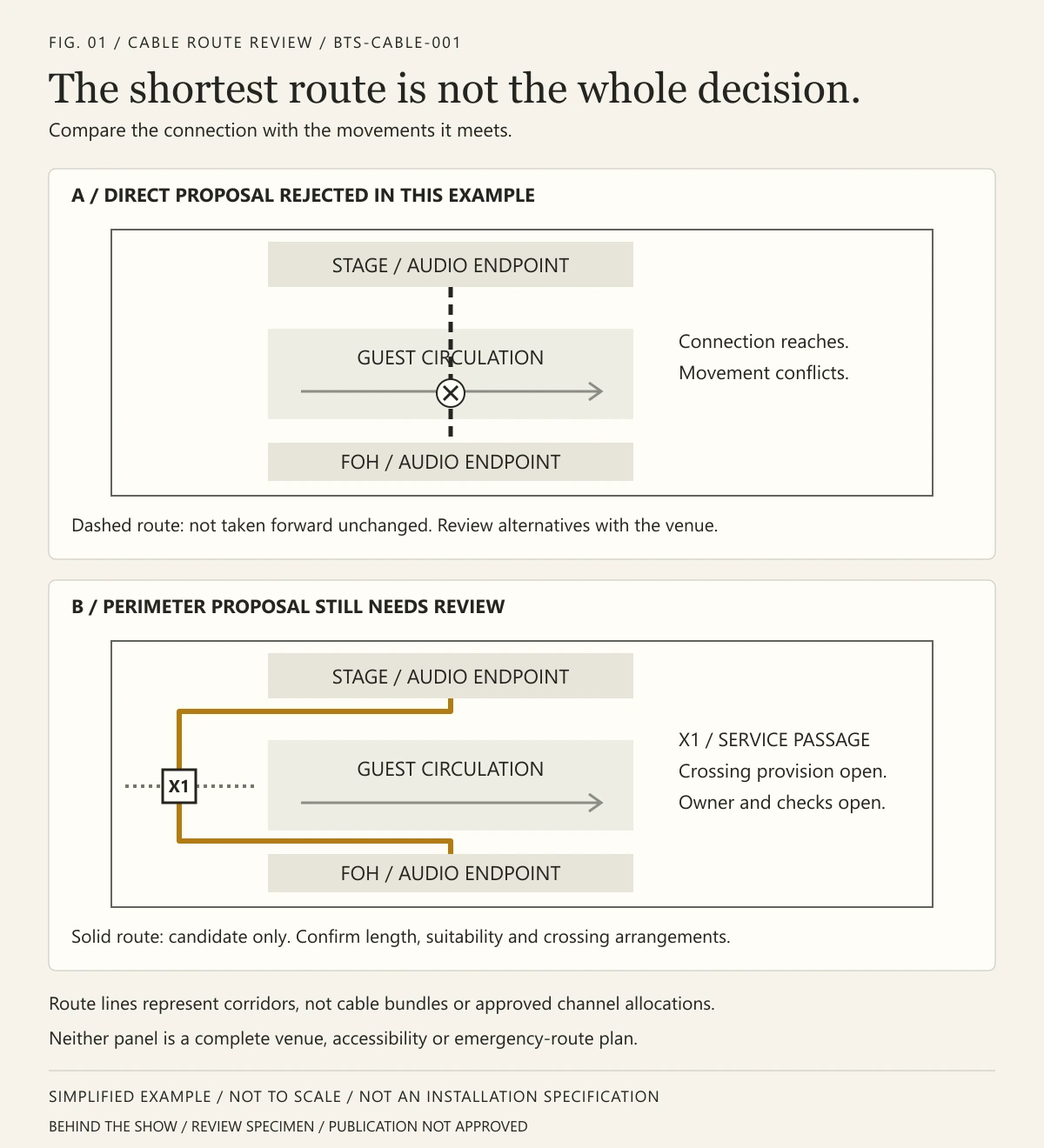

FIG. 01 / REVIEW THE WHOLE ROUTE / proposed BTS-CABLE-001

The revised route is a candidate for review, not an approved installation. It may be accepted after the outstanding matters are resolved, changed again or rejected. A useful drawing makes the remaining decision visible.

ILLUSTRATIVE SCENARIO

Worked example 2: a crossing shared by audio and video

At a fictional conference, audio and video both propose using crossing X1. Audio's quotation excludes cable protection. Video's crew expects protection to be supplied by the venue. The venue has not agreed to provide it.

The cables are listed, but the crossing has no accepted provider. The coordinator asks the venue and both departments to review the combined requirement. Audio and video supply their cable information; the venue confirms the intended movement and location constraints; the proposed protection supplier identifies a suitable arrangement for review. Channel allocation and any required segregation remain technical decisions, not a coordinator's guess.

The immediate result is an owned action, not a claim that the crossing is ready. An exclusion identifies what one supplier is not providing; it does not appoint somebody else.

ILLUSTRATIVE SCENARIO

Worked example 3: a late camera position

In a fictional rehearsal, the programme team requests a camera position on the other side of a doorway. The video team can make a picture appear, but the new cable path is outside the reviewed route.

The coordinator records the requested position and affected path. The venue reviews the doorway and movement implications; video confirms its connection requirements; the responsible teams agree the revised provision and relevant checks. The route record and identification change with the approved arrangement. If those matters remain unresolved, the camera proposal remains open or an alternative position is sought.

A working picture proves neither that the route is acceptable nor that the changed arrangement has been handed over.

ILLUSTRATIVE SCENARIO

Identify connections so another person can follow them

Use an agreed identification scheme at both ends where practicable. A useful record connects a cable identifier to its source, destination, system and responsible team. Keep those references consistent with the relevant patch, input or distribution records.

For example, an illustrative audio link could be labelled AUD-L01, with the record identifying its stage and FOH endpoints. That reference is not an electrical circuit number. Mains circuit identification must follow the electrical team's scheme. Colour can support identification, but should not be the only information available.

Record changes that affect how the connection is found, checked or removed. A neat label on an obsolete connection record is still misleading.

Separate route inspection from system checks

Before handover, review the installed path against the agreed plan: crossings, protection, connection access, identification and unresolved work. Establish who has checked the relevant condition and what their acceptance covers.

Electrical inspection, testing and authorization for use follow the responsible competent person's arrangements. Audio checks address the relevant audio connections and operation; network and video checks address their own requirements. Line check is useful audio context, not an electrical safety certificate.

Keep the outcomes separate in the record. A functioning system can still have a route issue. A protected route can still carry a connection that does not work. Neither finding substitutes for the other.

Keep the route usable through changes and removal

Include installation dependencies in the production schedule. A route that becomes inaccessible after seating, staging or scenery is installed needs coordination before that work closes access.

For a changeover, agree what moves, what remains connected and which checks are required before the next segment. This is not permission to connect or disconnect energized equipment; the relevant specialist determines the working method.

Agree who receives reports of displaced protection, a damaged cable or a changed movement path. Reassess affected arrangements rather than relying indefinitely on the first handover. Plan removal with the responsible teams so another department's live service is not removed by assumption.

Plan the route, assign the responsibility and check the installed result.
